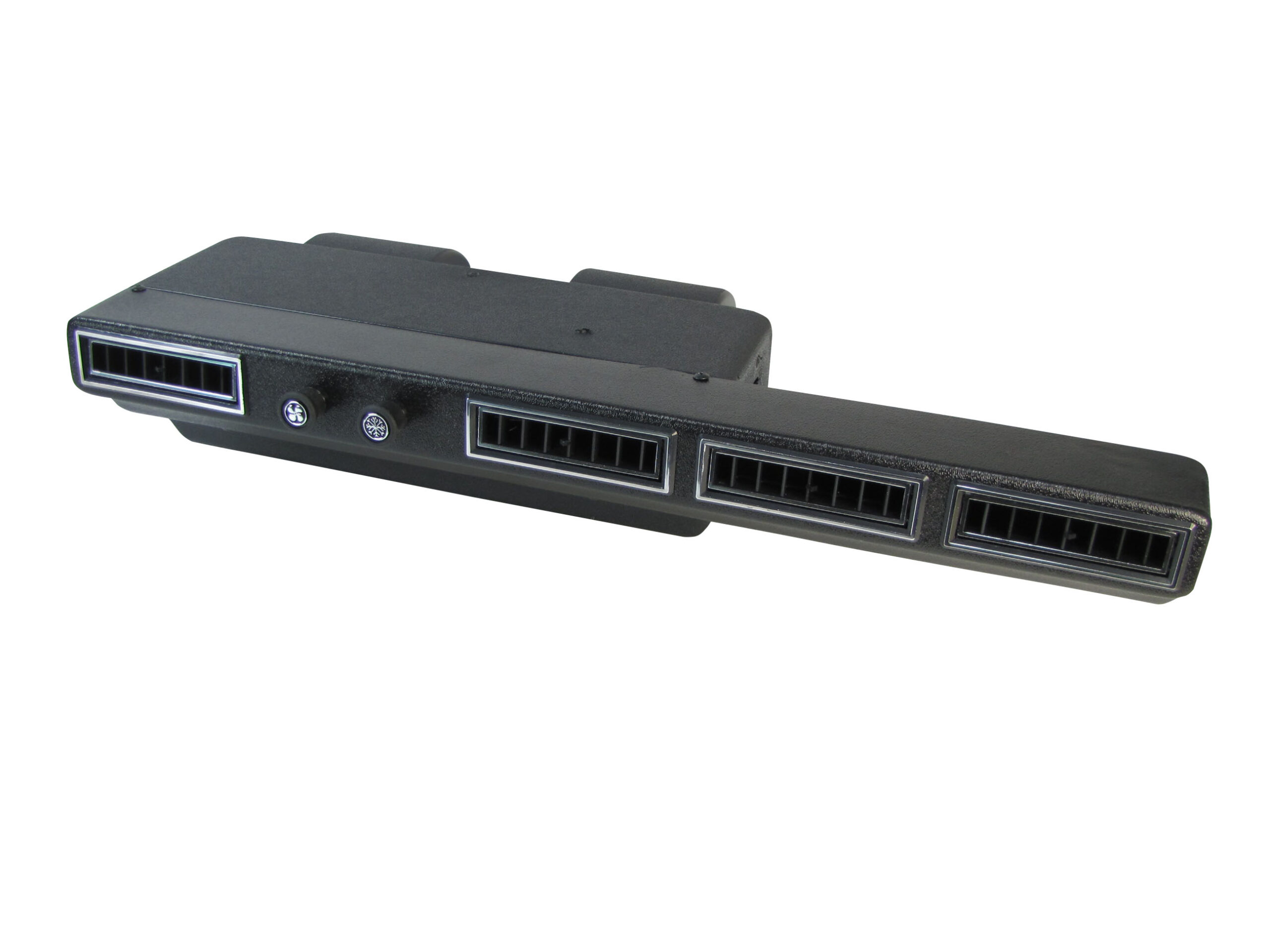

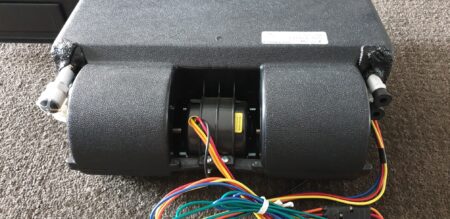

This Heat & Cool under dash A/C & Heat System features four rectanguler louvers, slimline faceplate and left side coil. Controls include 3 speed blower switch, adjustable thermostat and cable operated heater valve. Double shaft, 3 speed blower motor with dual fan wheels provides approximately 265 CFM of airflow across the high efficiency, 32 pass coil for maximum cooling capacity.
Complete System Includes:
- Underdash Heat & Cool Unit
- Condensation Drain Tube
- Wire Harness
- Expansion Valve w/Clip & Tacky Tape
- Unit Bracket w/Mounting Hardware
- Heater Valve Kit (Electronic Heater Valve upgrade available +$98.00)
- A/C Hose Kit
- Receiver/Drier — Optional Chrome Drier Upgrade Available!
- Binary Pressure Safety Switch — Trinary Pressure Switch Upgrade Available!
- Compressor — Optional Chrome or Polished Compressor Upgrade Available!
- Compressor Mounting Bracket*
- Condenser**
* Compressor Brackets not available for all engine applications, some special order, (ie: Ford Flathead, Mount & Drive Kits, & Serpentine belt drive) may require an additional charge
** Condenser Size will vary by vehicle application.
