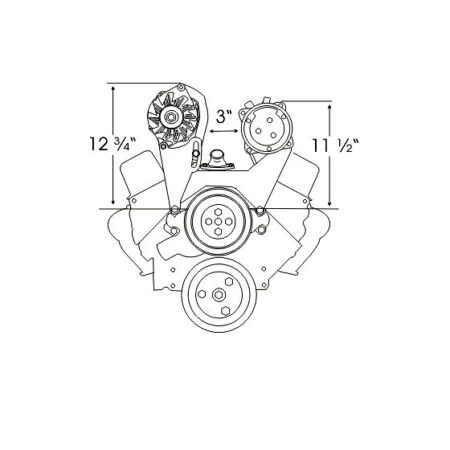

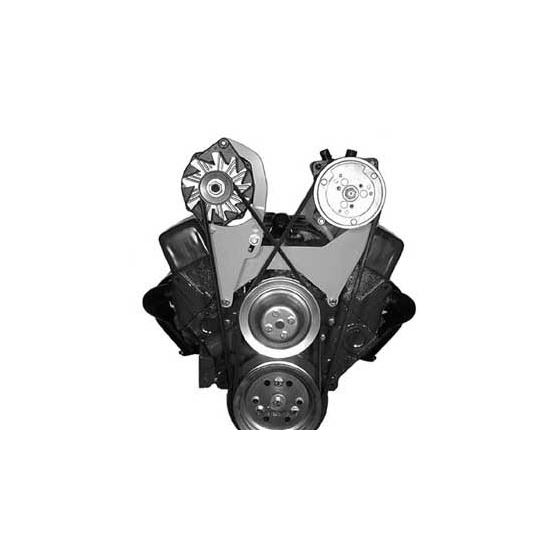

Chevrolet Small Block Alternator Mount, Short Water Pump, Right Hand side, Passengers Side (LHD), Top Mount
Mounts most GM 10SI Series Alternators with 12 & 6 o’clock mounting holes.
Recommended for tall narrow engine compartments.

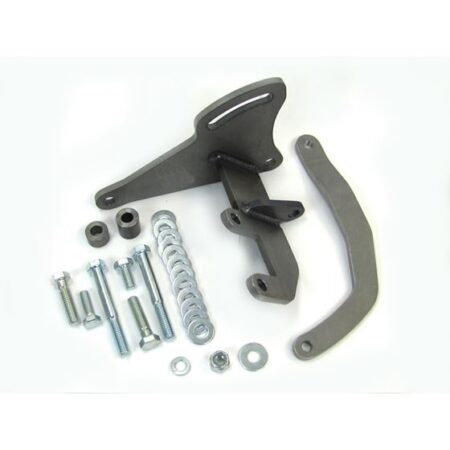

Bracket mounts to top water pump bolt and the two front intake bolts. May be used individually or as a pair.
Will clear tall valve covers. NO DRILLING OR TAPPING REQUIRED.
Will Not Work With Vortec Heads
Bracket may be used individually or with matching compressor bracket #40-100L (Sold Separately)
Fits Head Type A. B, C, E Engine ID
small-block-chevy-short-water-pump-belt-routing-in
