This universal A/C hose kit is used to add an auxiliary unit to the rear of a vehicle. “T” Fittings can be installed into existing hoses or in combination with hose kit #51-1034 for new installations.
Includes:
– 20′ of each suction & liquid line hoses
– 4 o-ring fittings
– 2 “T” fittings
– Ferrules
– Wrap around hose clamps
– Rubber grommets
– Tie wraps
– All necessary o-rings
TIP: Recommend adding a second receiver drier to the liquid line near the auxiliary unit as a reservoir to provide a constant supply liquid refrigerant to the unit for maximum cooling performance.
- Speciation for Hoses;

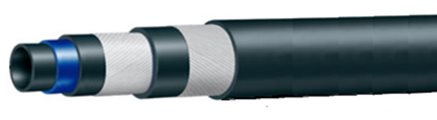

- GALAXY® 4826
Tube- CR | Barrier- PA | Friction- NBR | Reinforcement- PET | Friction- SBR | Cover- CIIR- Two polyester spiral barrier hose
- J51 aII outside diameters
- Temperature range -22 °F to 257 ° F (-30 °C / 125 °C)
- Compatible with R-12 / R134a refrigerants and mineral oil / PAG’s
- Meets GM 10013C and Delphi SD2-254 specifications (5/8 & 3/4)
- Meets J2064 “TYPE C Class II” hose performance
- Flexible – easy to route
