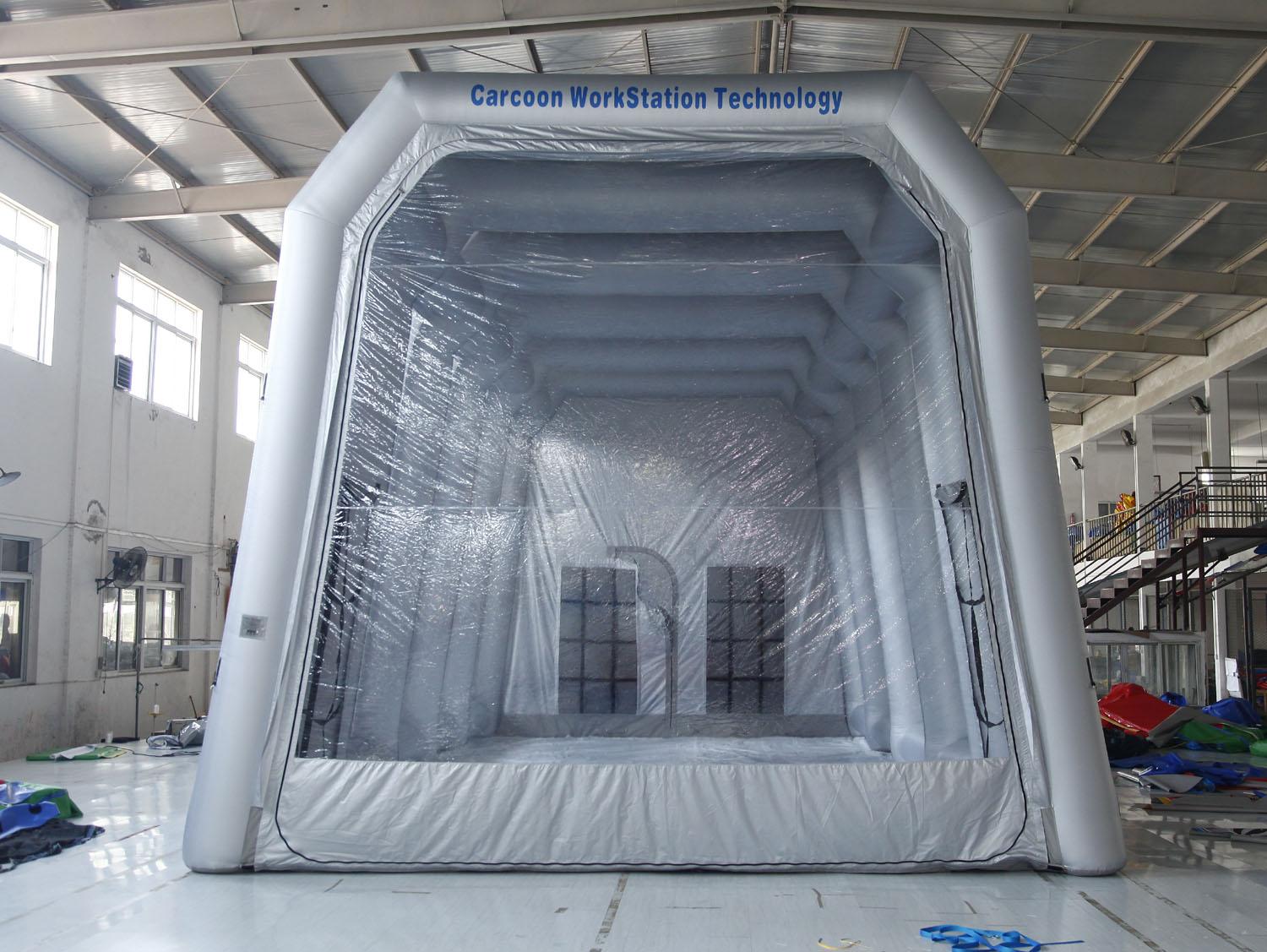

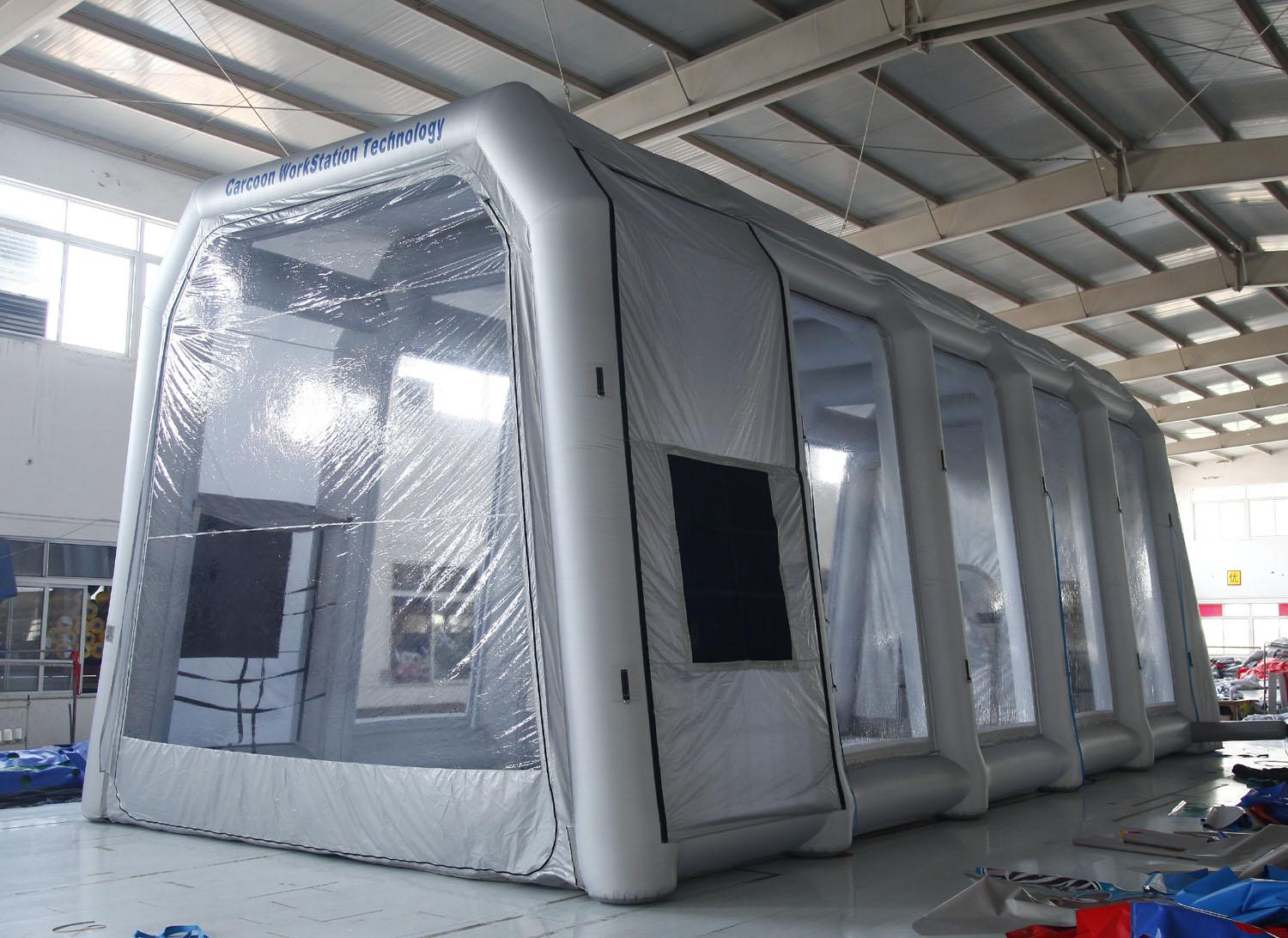

The New Sealed Workstation has all the features of the traditional Workstation with the added benefit of not requiring a constant pressure fan. The sealed main body of the Workstation once inflated will hold pressure for weeks at a time. A built in over pressure valve protects against variations in pressures caused by heat and cold.
Features and Specifications
The Drive-in portable Workstation is based on High Volume Low Pressure Technology. The Workstation runs on 230 volts. It’s very economical and can be used virtually anywhere. Carcoon’s patented airflow technology exceeds the EPA emissions requirements for capture efficiency. The Workstation also meets & exceeds OSHA ventilation and combustible material requirements.
Our Latest drive in Workstation Features a massive 16.63 m2 of filter area. The total paint arrest filter area is 10.77 m2 (four filters). Two carbon filters add an additional 2.39 m2 helping to eliminate odors for the workstation. The two massive input filters combine for another 3.85 m2.
- Cross flow ventilated mobile Spray Booth
- Designed to help the S.M.A.R.T.(mobile) Repairer comply with Health and Safety and Environment Protection
- Designed to improve working conditions and productivity.

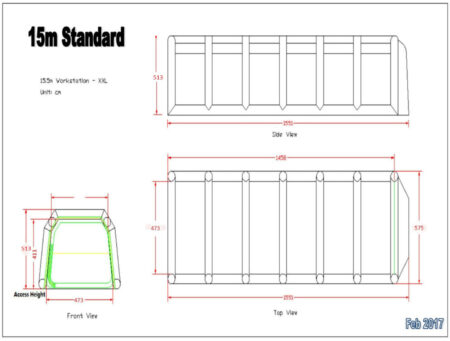

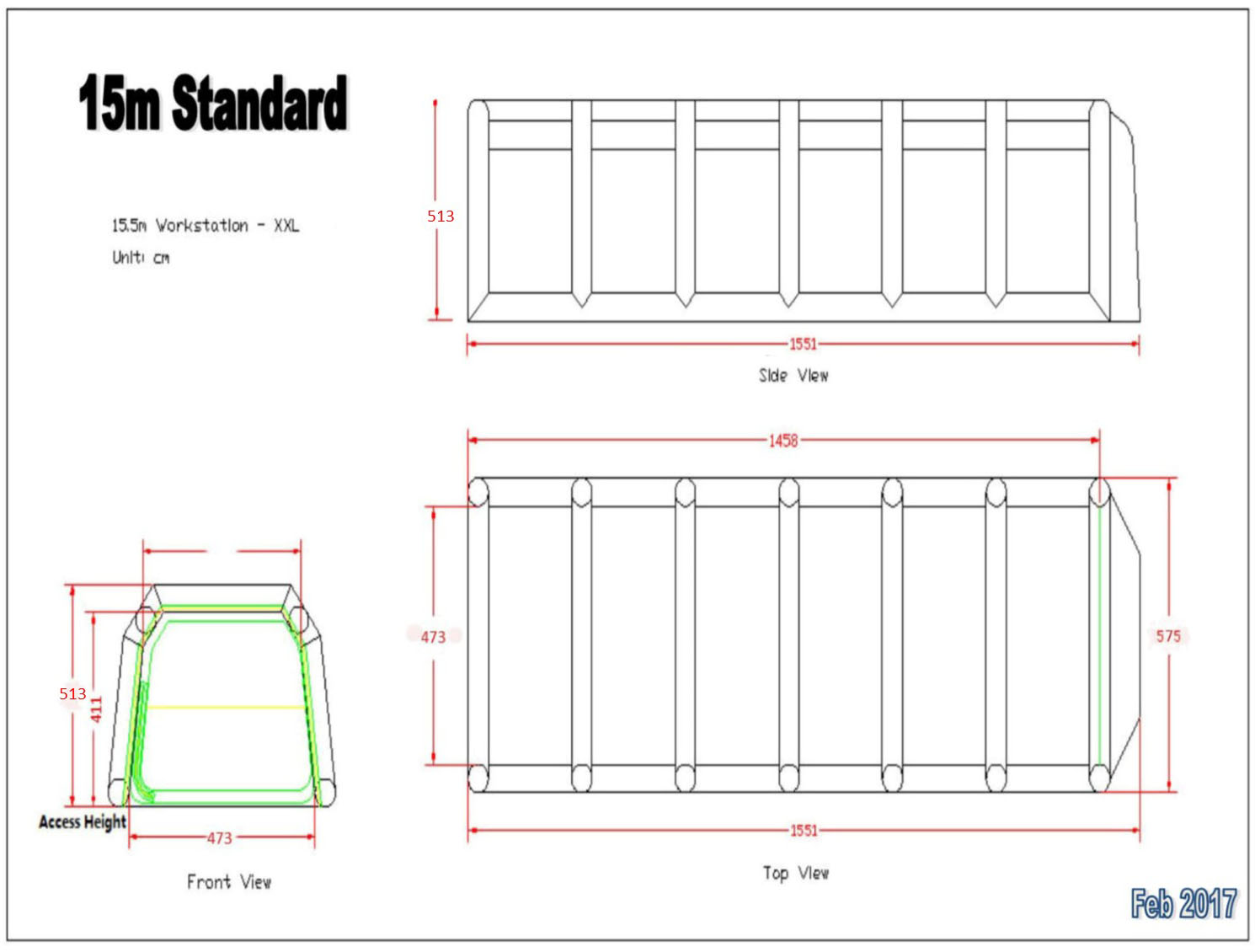

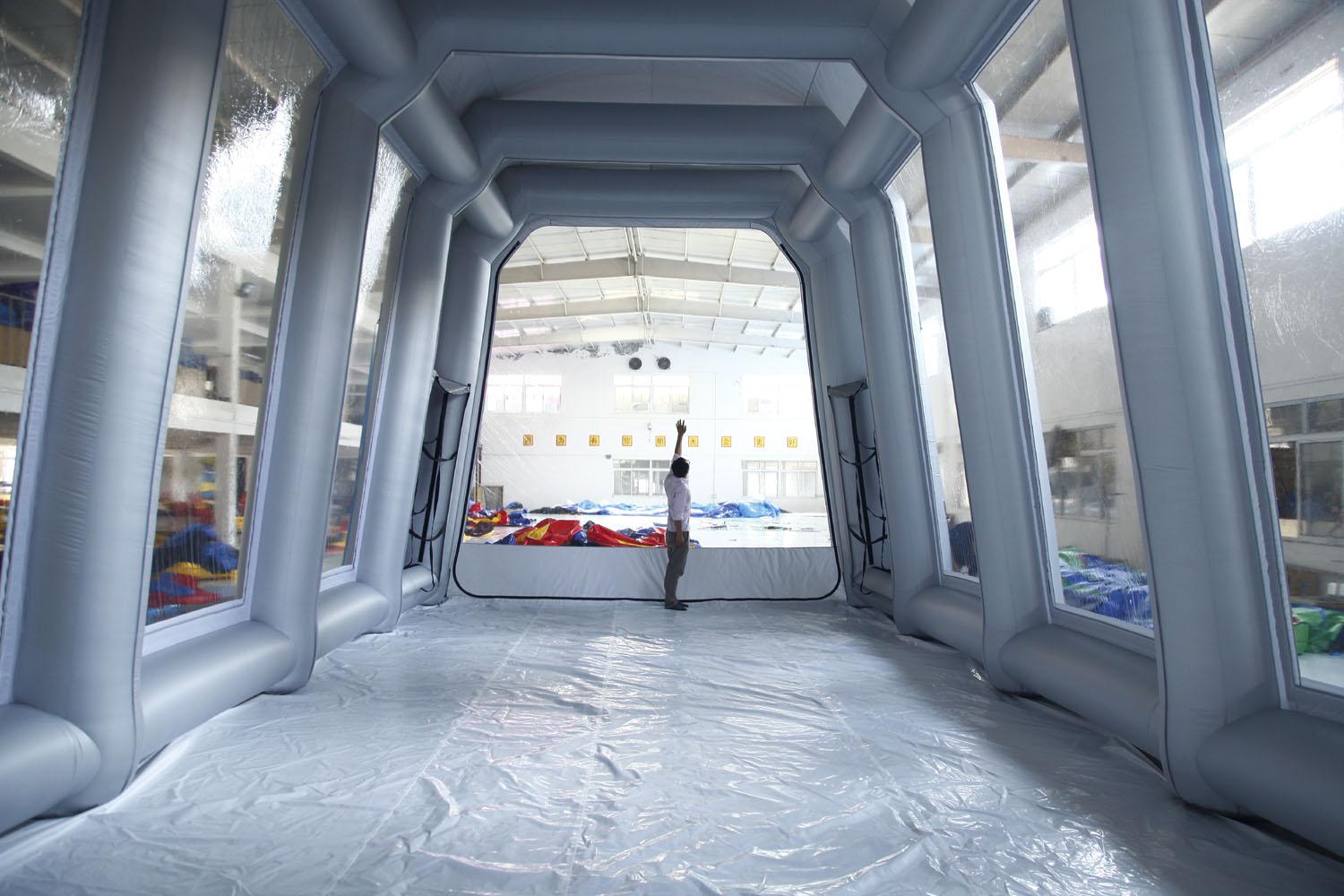

- Workspace – 14.6m long x 4.73m wide, 4.11m high access
- Total footprint 15.5m x 5.4m, 4.5m High
- Weight 160kg, Fan units 2 x 15Kg & 2 x 17Kg.
Materials
- PVC Glass clear-flame retardant-antistatic additive
- Light weight specially coated Nylon and Polyester
- Heavy duty PVC coated polyester base material
- Splash proof 8mm coil type closers
Air Supply
- Inflator/Deflator fan, 2 x 2000 watts, 2000 litres per min, 4.5 kg 32 cm x 17 cm h x 26 cm
- Max Air Supply 2 x H.P 3180 CFM 230 volt 3 speed 50Hz size 47x47x45cm weight 17.4Kg
- Air changes, every 3 minutes
- Input Filters : surface area 3.85 m2
- Type : G4 synthetic media
- Exhaust filter trap : surface area 10.77 m2
- Type : Synthetic Media Paint Arrest
- Activated Carbon return to atmosphere
- Type : Carbotec RT20 Foam
- Click to enlarge.
