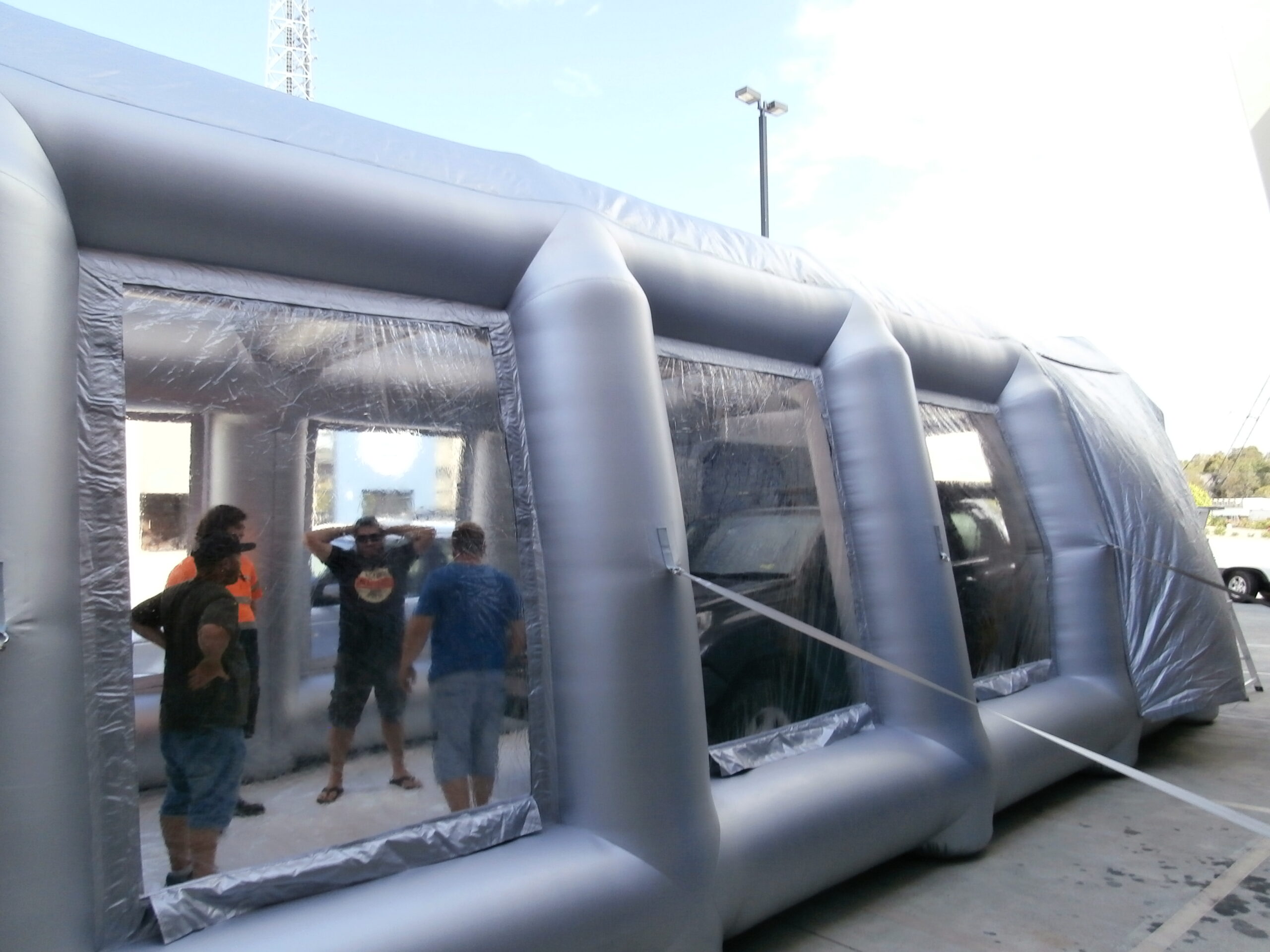

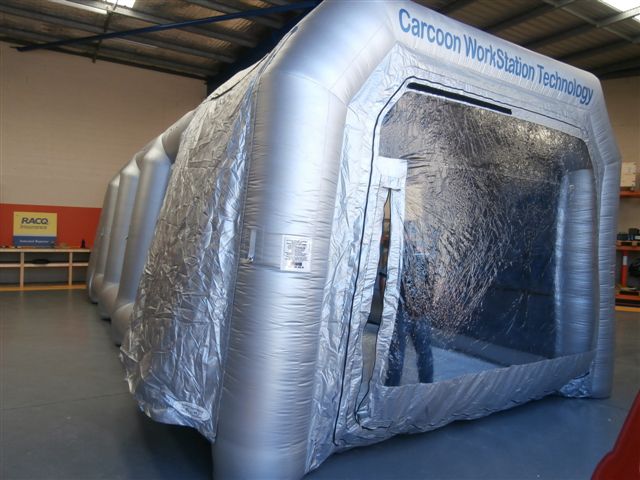

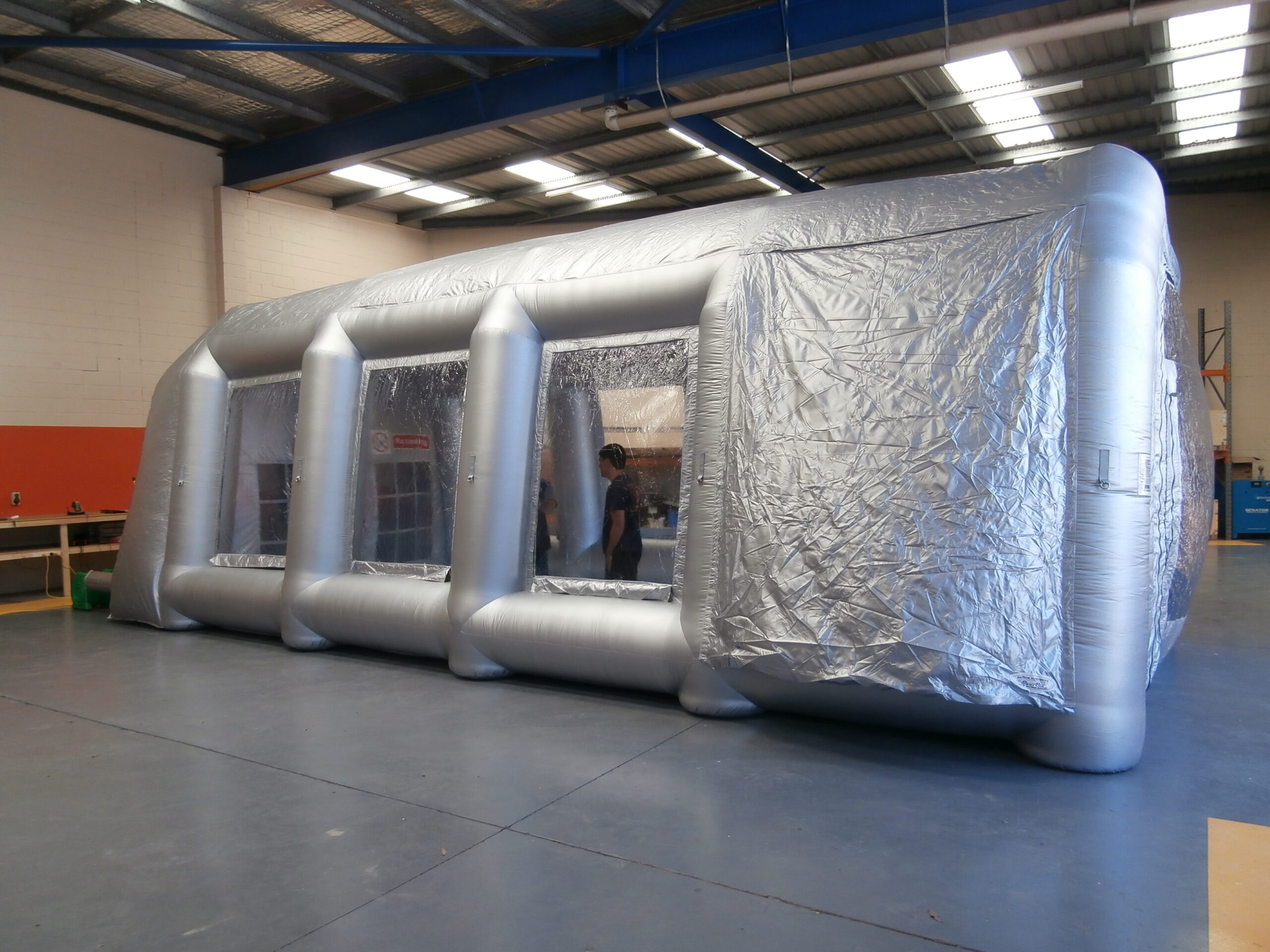

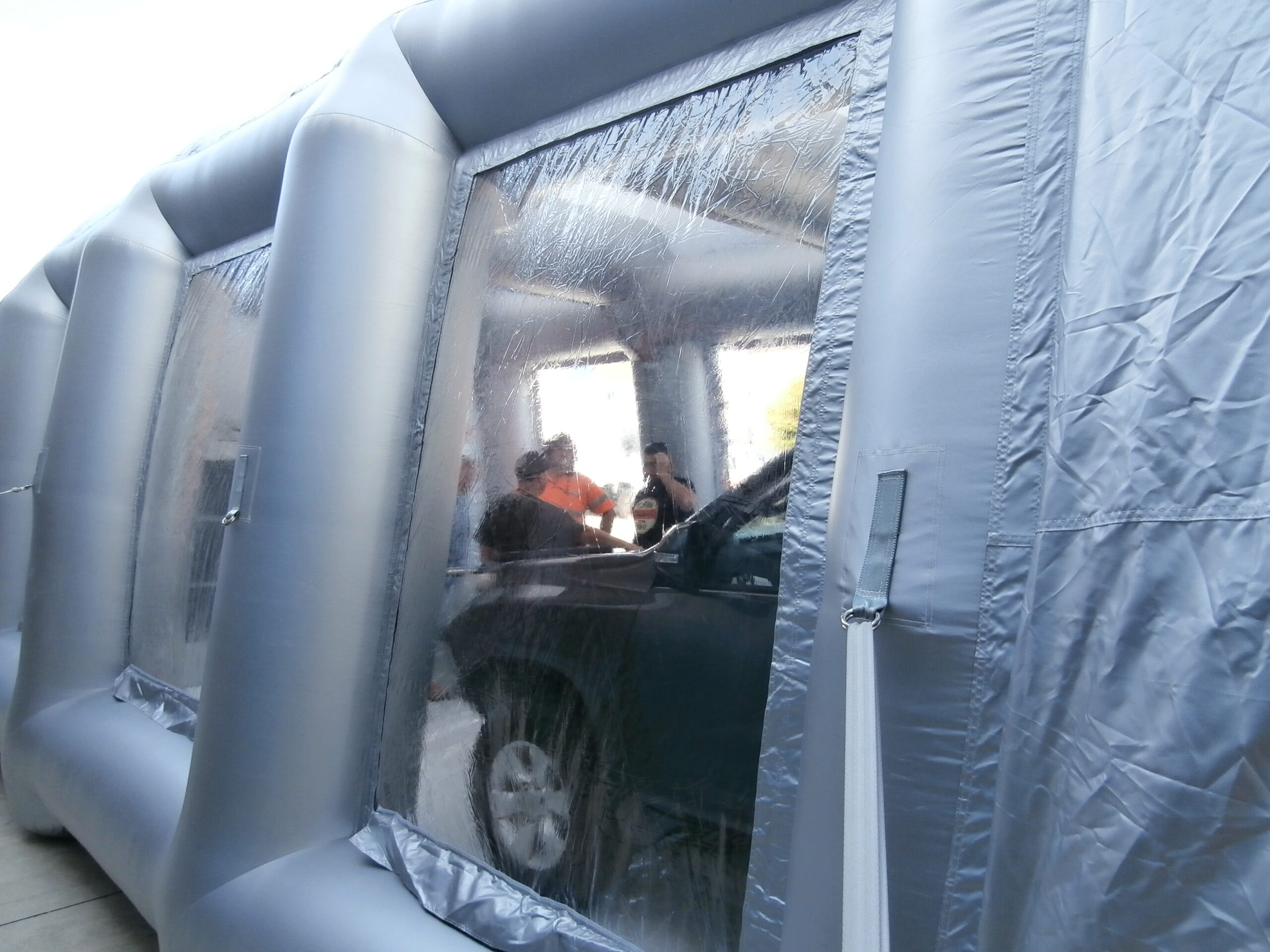

9.5m Large; New Sealed Structure

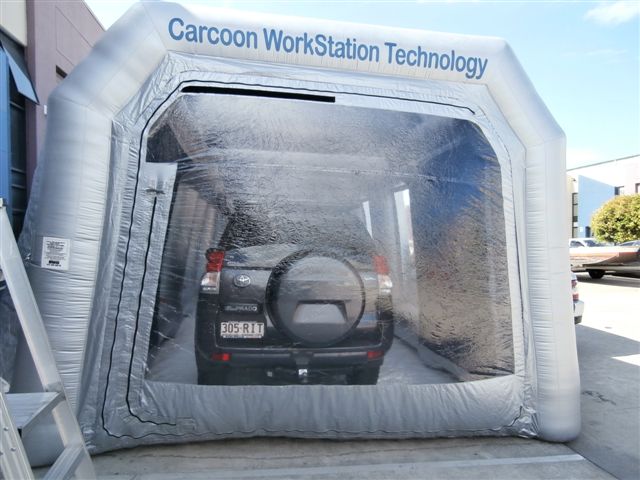

Large 9.5m Workstation is an ideal product for mobile repairers, large enough to house high top vans.

The New Sealed Workstation has all the features of the traditional Workstation with the added benefit of not requiring a constant pressure fan. The sealed main body of the Workstation once inflated will hold pressure for weeks at a time. A built in over pressure valve protects against variations in pressures caused by heat and cold.

The Workstation is effectively a fully functioning mobile paint booth using a three thousand one hundred & eighty CFM air supply unit and industry standard filter media both on the input and exhaust.

Find out more about the benefits of Carcoon workstations which are available in a range of sizes for a variety of purposes.

Features & Specifications

The Drive-in portable Workstation is based on High Volume Low Pressure Technology. Set up and take down can be done in a matter of minutes. The Workstation runs on 240 volts. It’s very economical and can be used virtually anywhere.

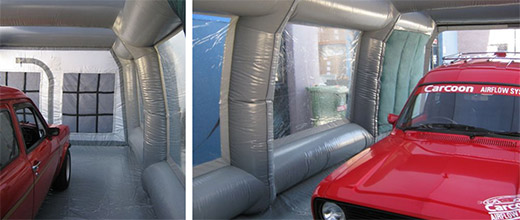

Our Latest drive in Workstation Features a massive 16.63 m2 of filter area. The total paint arrest filter area is 10.77 m2 (four filters). Two carbon filters add an additional 2.39 m2 helping to eliminate odours from the workstation. The two massive input filters combine for another 3.85 m2.

• Weight 98kg, Fan units 15Kg & 2 x 8Kg.

Materials

• PVC Glass clear-flame retardant-antistatic additive
• Light weight specially coated Nylon and Polyester
• Heavy duty PVC coated polyester base material
• Splash proof 8mm coil type closers

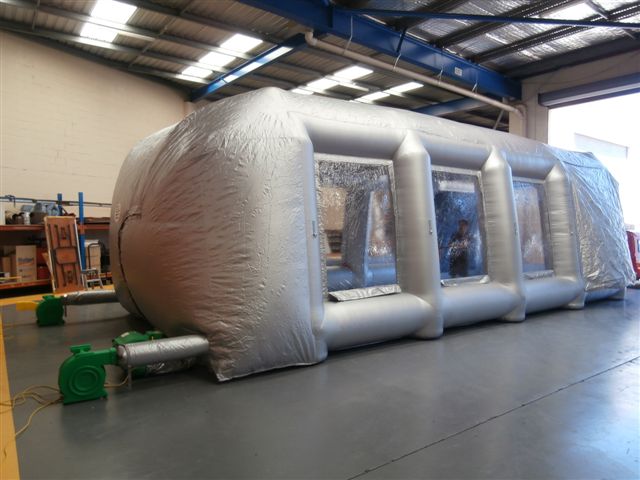

Air Supply

• New Sealed Workstation
• Max Air Supply 1 H.P 3180CFM 230 volt 3 speed 50Hz size 47x47x45cm weight 15.4Kg
• Air changes, every 3 minutes
• Input Filters : surface area 3.85 m2
• Type : G4 synthetic media
• Exhaust filter trap : surface area 10.77 m2
• Type : Synthetic Media Paint Arrest
• Activated Carbon return to atmosphere\
• Type : Carbotec RT20 Foam
