Features and Specifications

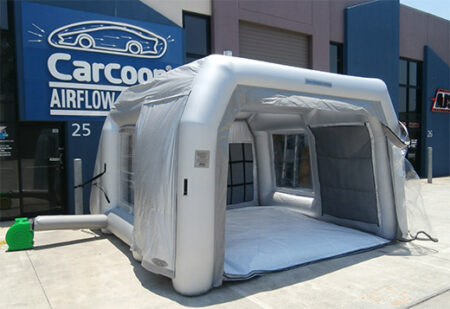

- Cross flow ventilated mobile Spray Booth
- Designed to help the S.M.A.R.T.(mobile) Repairer comply with Health and Safety and Environment Protection
- Designed to improve working conditions and productivity.
- Workspace – 3.0m x 3.4m, 2.0m high access
- Workspace volume 24 cubic meters

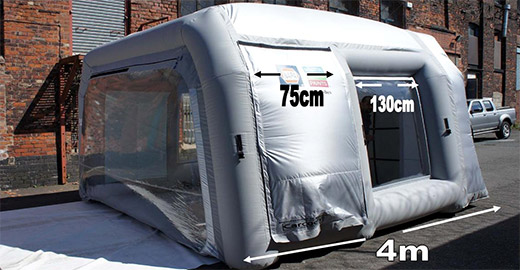

- Total footprint 4.0m x 4.4m, 2.4m High
- Weight 48kg, Fan units 15Kg & 17kg, optional Hardcase storage box 10kg.
Materials
- Glass clear PVC
- Light weight specially coated Nylon and Polyester
- Heavy duty PVC coated polyester base material
- Splash proof coil type zippers.
Air Supply
- Pressure fan, 4.2 Amp 1 H.P 1010 CFM- 44x35x47 weight 17.2Kg
- Max Air Supply 1/3 H.P 2860CFM 3 speed 50Hz 230 Volt 1130 watts – size 45x47x47cm weight 15.4Kg
- Input Filters: surface area 2.79 sqm
- Type : G4 synthetic media
- Exhaust filter trap: surface area 3.0 sqm
- Type : Synthetic Media Paint Arrest
- Activated Carbon return to atmosphere
- Type : Carbotec RT20 Foam.
Cost complete $9,980.00, inc GST
Download PDF files:

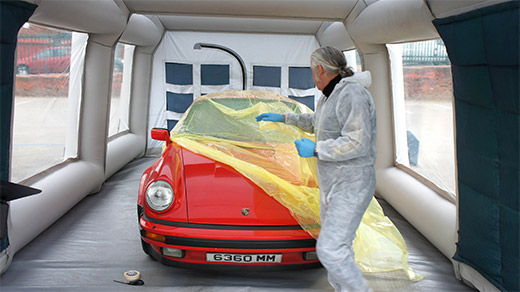

Vehicle Entry

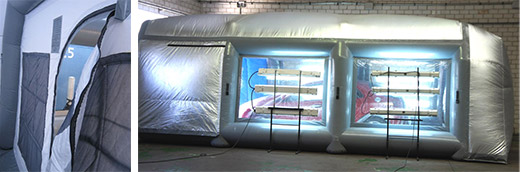

Pre-Inflation (left) Packaged size (right)
Replaceable base mat cover (left) Replaceable windows (right)
Pressure Unit
Main Air Supply Unit 2860 CFM 3 Speed
Optional Hardcase Storage Box
