Features and Specifications

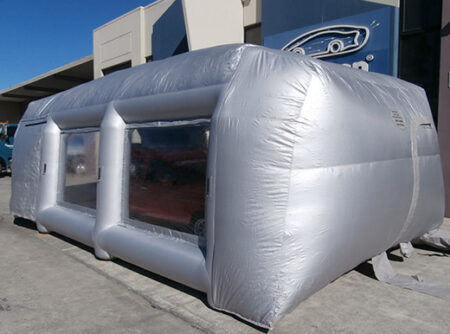

The Drive-in portable Workstation is based on High Volume Low Pressure Technology. Set up and take down can be done in a matter of minutes. The Workstation runs on 240 volts. It’s very economical and can be used virtually anywhere. Carcoon’s patented airflow technology exceeds the EPA emissions requirements for capture efficiency. The Workstation also meets & exceeds OSHA ventilation and combustible material requirements.
Our Latest drive in Workstation Features a massive 16.63 m2 of filter area. The total paint arrest filter area is 10.77 m2 (four filters). Two carbon filters add an additional 2.39 m2 helping to eliminate odors fro the workstation. The two massive input filters combine for another 3.85 m2.
- Cross flow ventilated mobile Spray Booth
- Designed to help the S.M.A.R.T.(mobile) Repairer comply with Health and Safety and Environment Protection
- Designed to improve working conditions and productivity.
- Workspace – 6.9m x 3.45m, 2.16m high access
- Total footprint 7.62m x 4.25m, 2.56m High
- Weight 68kg, Fan units 15Kg & 17Kg.
Materials
- PVC Glass clear-flame retardant-antistatic additive
- Light weight specially coated Nylon and Polyester
- Heavy duty PVC coated polyester base material
- Splash proof 8mm coil type closers
Air Supply
- Pressure fan, 4.2 Amp 1 H.P 1010 CFM- 47x35x47 weight 17.2Kg
- Max Air Supply 1 H.P 3180CFM 230 volt 3 speed 50Hz size 45x47x47cm weight 15.4Kg
- Air changes, every 3 minutes
- Input Filters : surface area 3.85 m2
- Type : G4 synthetic media
- Exhaust filter trap : surface area 10.77 m2
- Type : Synthetic Media Paint Arrest
- Activated Carbon return to atmosphere
- Type : Carbotec RT20 Foam
Download PDF files:
Vehicle Entry
Access Airlock
Input Filters and Primary Paint Arrest Filters
Replaceable base mat cover (left) Replaceable windows (right)
Pressure Unit
Main Air Supply Unit 3180 CFM 3 Speed
