Developed for fuel injection or thirsty carburetor systems, Drake’s extra capacity tank is built to deliver. Featuring a top mount fuel pick-up port, enlarged lower half with strengthening side ribs, multi-flange sender port, and a smooth powder coat finish, tank is ready to install in your stock style frame. Make your ride Drake Tank Strong™ and cruise easy.
Fuel Injection or Carburetor Ready
- Ready to serve fuel injection or high-performance carburetor systems.
- Fuel pick-up port hole easily accepts Drake’s own pick-up unit or other common aftermarket units.
- Planning to create something unique? Close off the pick-up port with included block off plate and locate your own outlet.
Made for the Job
- High strength steel with die-stamped side ridges keeps the Tank strong and sturdy while continuous seam welds hold the gas where it should be – inside.
- Powder coat finish provides superior corrosion resistance for maximum protection against whatever nastiness the road might deliver.
- Pressure tested before shipment.
Features
- Internally welded reservoir tray ensures fuel availability when you need it. No more fuel starvation when accelerating or cornering.
- Fully baffled for slosh free rides.
- Enlarged from 14 to 15.5 gallons, Drake’s tank has more of the fuel your demanding engine needs.
- Drake’s exclusive multi-pattern fuel sender flange makes connections easy. Accepts VDO, Stewart Warner, Classic Instruments and Drake senders for original Ford gauges.
Includes
- x1 Tank.
- x1 Fuel Sender Gasket.
- x1 Fuel Pick-up Port Gasket.

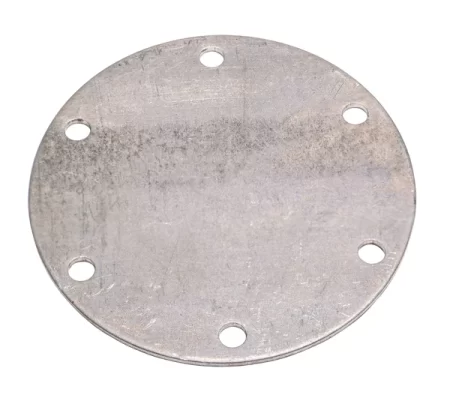

- x1 Fuel Pick-up Port Block Off Plate.

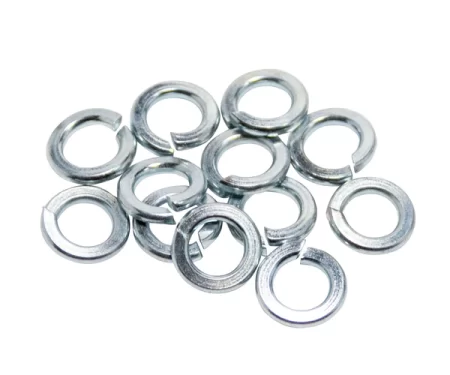

- x1 Hardware Pack (for Sender and Pick-up).
Tech Specs
- Material: High strength steel with maximum protection powder coat finish (grey).
- Dimensions (overall): 44-7/8 inch long x 15-1/4 inch wide x 11-1/8 inch deep.
- Capacity: 15.5 gallons.
- Sending Unit Port: Drake Multi-Flange. Accepts VDO, Stewart Warner, Classic Instruments and Drake senders.
- Fuel Outlet: Top mount port accepts popular bolt-in pick-up units.
- Filler Neck OD: 1-7/8 inch

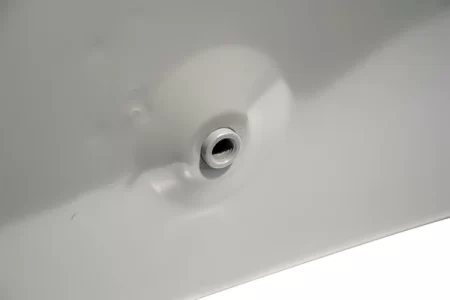

- Drain Plug: 1/4-18 NPT.
- Mounting: 3/8-24 thread cage nuts welded at stock locations.
