The Legend Series Version 2.0 takes that classic offering one step further. It is still a complete brake system designed to upgrade your drum brakes to the reliability and performance of disc brakes. There are times however that a conventional rotor just will not cut it. The Version 2.0 uses a two-piece rotor that consists of a billet aluminium hub with a directionally vented rotor which allows us to adjust things such as track width that might not have been available otherwise. Installation is still a weekend project that will pay dividends for many years to come.

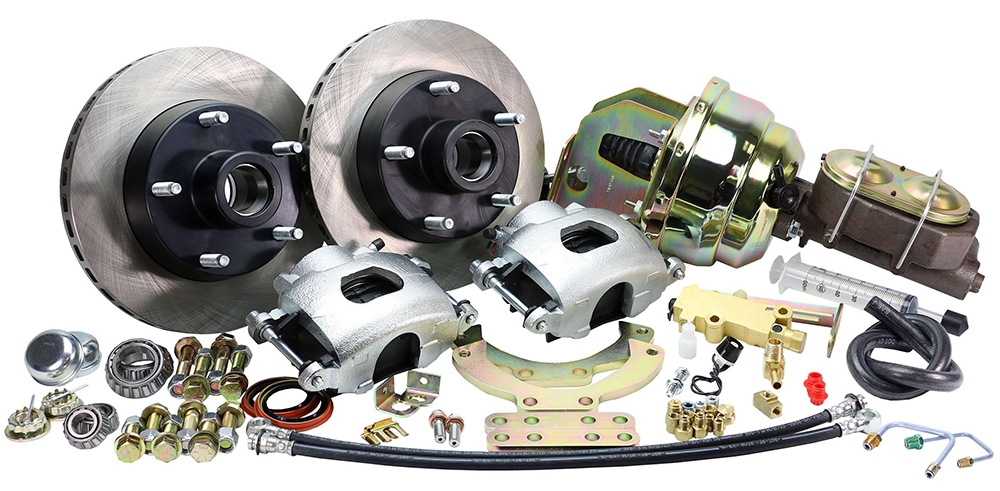

Kit Includes:

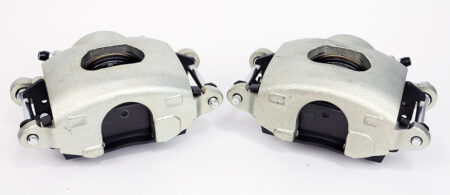

- Single Piston D52 OE Calipers – Silver zinc finish w/stainless steel pistons
- Semi-Metallic Brake Pads
- 11-1/8 inch Directionally Vented 2-piece Rotors with Aluminium Hubs
- Laser Cut and Zinc Plated Steel Primary Caliper Mounting Bracket
- Laser Cut and Zinc Plated Steel Secondary Caliper Mounting Bracket
- Wheel Bearings and Grease Seals
- Grade 8 Hardware
- Spindle Nuts & Washers
- Dust Caps
- Rubber Brake Hoses

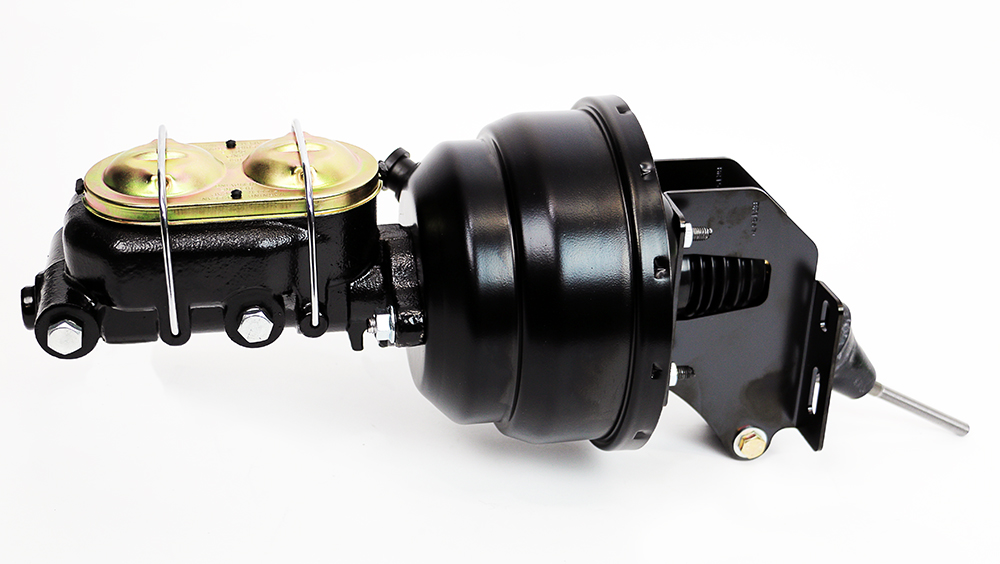

- 8 inch Dual Diaphragm Booster with Mounting Brackets
- 1-1/8 inch Bore Dual Reservoir Master Cylinder

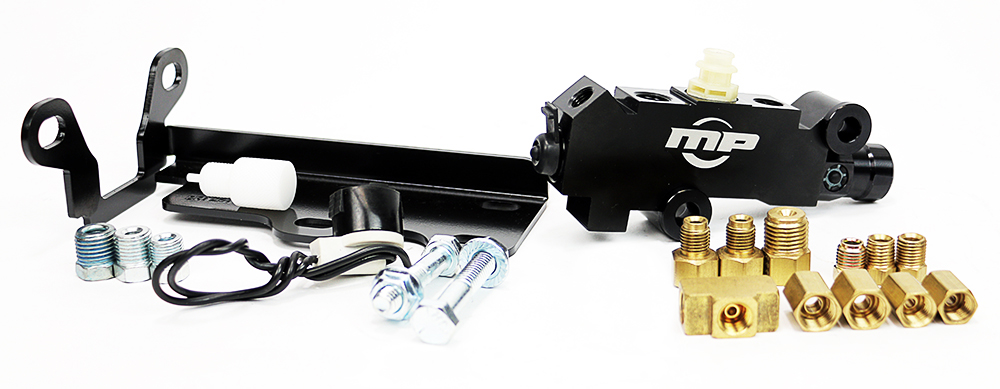

- Combination Valve Kit
- Hard Lines from Master Cylinder to Combination Valve
Please allow 10-14 days supply time.
Fitment notes:
Requires the use of a 15″ wheel. Use the template to verify wheel fitment. Rotors have both a 5 x 5-1/2″ pattern (studs installed) and a 5 x 4-1/2″ pattern. Designed to work on OE drum brake spindles.
Installation Instructions
Wheel Fitment Template
Template Instructions

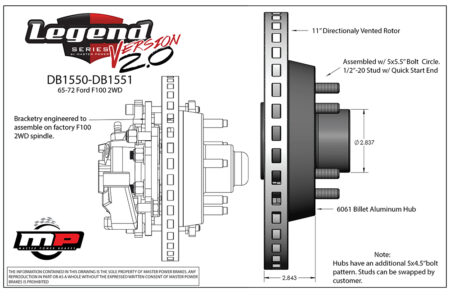

F100 Rotor Graphic
