For use with original 5 bolt bell housing.
Adapter Plate Required 2 Holes Drilled into the Bell Housing
Bell housing modification is required on all original (1964 1/2-1970) and late model bell housings to adapt the Borg Warner “standard” and “World Class” T-5 SROD (single rod overdrive) five speed transmission to an early model Mustang, and to utilize the stock clutch linkage.
The modifications required, when using an original (1964 1/2-1970) bell housing, are to drill one clearance bolt hole and drill and tap a second bolt hole to attach the adapter/spacer plate to it. The spacer is required because of the longer transmission input shaft of the T5 transmission, and also adapts the T-5 mounting bolt hole pattern to the original bell housing.
If you do not intend to use the early model clutch linkage and are opting for a cable installation, you can use the late model bell housing and late model throw out arm as they are, without any modifications required.
Caution note – Always check the condition and fit of the crankshaft pilot bushing, since some T-5’s have a smaller diameter pilot.Problems such as clutch chatter and popping out of gear will occur if the pilot bushing fit is not correct.

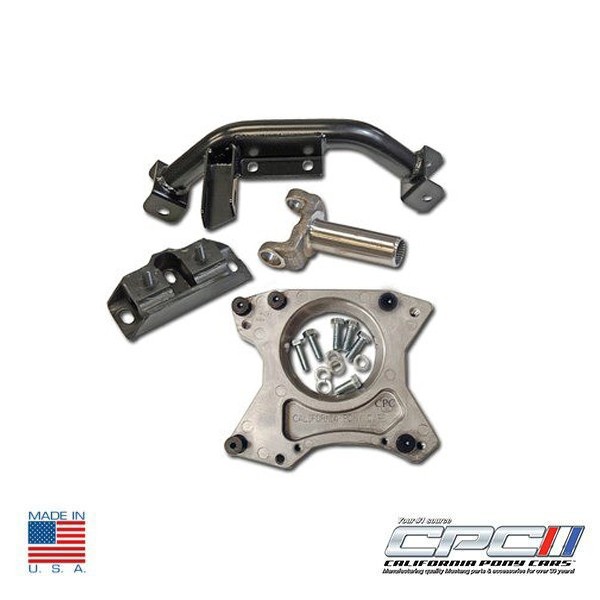

Kit includes:
1 TRA-645-423 Adapter Plate
1 TRA-656-522 Crossmember Bar with parking brake bracket
1 TRA-650-521 Trans Mount Insulator
1 TRA-650-517 Drive Shaft Slip Yoke
Technical Articles
http://www.fordmuscle.com/archives/2000/09/t5swap/index.php
http://www.flatheadv8.org/ernie/ernie-t5.htm
View installation video here:
