Custom Underdash Cool Only A/C System for 1965-1966 Ford Mustang with original 289 or 260 V-8 with alternator.
This A/C System includes the required 3 groove crankshaft pulley.

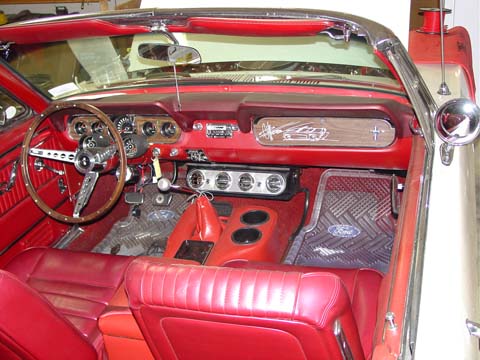

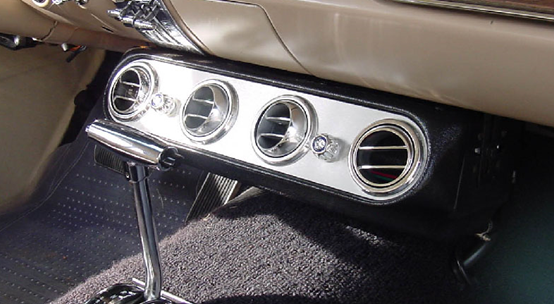

Easy to Install! Underdash unit mounts to bottom edge of dash. Chrome ball louvers and brushed aluminium face give a nostalgic original appearance. Four speed switch operates 3 speed blower motor with dual fan wheels providing approximately 260 CFM of airflow. High volume 32 pass coil is 16-33% larger than similar competitors units.

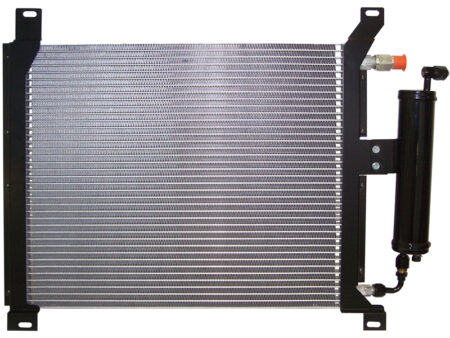

The custom condenser assembly provides maximum cooling capacity using our Aluminium SuperKool Condenser Assembly with factory style drier and mounting brackets.

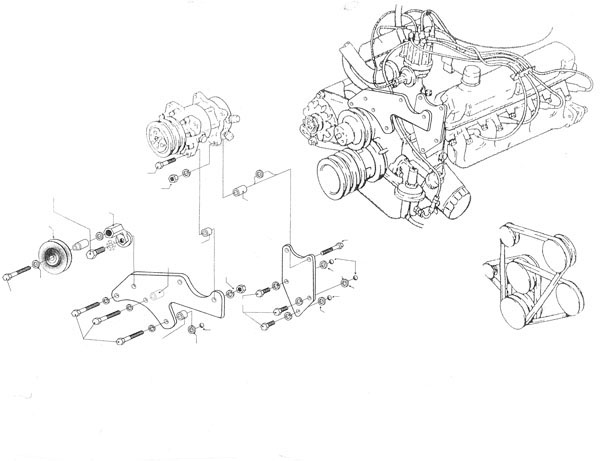

Sanden style Compressor and bracket mount on the Drivers side of the original 289 V-8 engine. ( Important Note: If your vehicle does not have the original 1965-66 289 engine please contact our sales department about bracket availability before ordering )
**This A/C System will be for use w/134A Refrigerant unless otherwise specified**
Underdash unit meassures; 410mm wide 122mm High 295mm deep

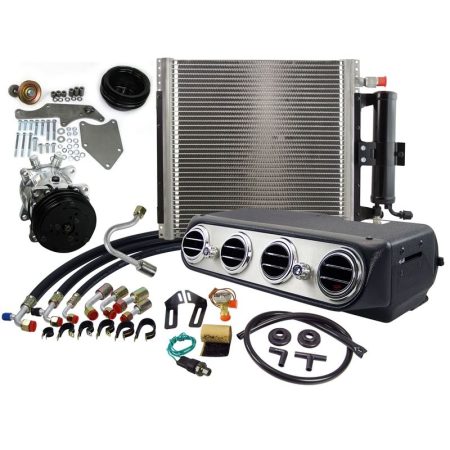

CAP-365M-289 includes:
- Underdash Cool Only A/C Unit
- Mounting Bracket & hardware
- Compressor
- Compressor Bracket (No Belt provided)
- Compressor Binary Safety Switch
- Condenser Assembly w/drier
- A/C Hose Kit
System Upgrades Available:
- Heat & Cool +$100.00
- UG-21-CHR Chrome Compressor
- UG-21-POL Polished Compressor
- UG-24-0103 Trinary Pressure Switch Upgrade
Shipping Note: Normal processing or lead time to build & package a custom A/C system is 7-10 Business Days to ship.
