Twin regulated fuel system delivers static referenced fuel to the HPFP and MAP referenced fuel to the port injection for beyond 1400 rwhp (recommended to run one pump full time, then activate secondary pumps under load). Supplies High Pressure Fuel Pump (HPFP) and port injection (and small wet nitrous) Includes in-tank supply system that retains OE transfer, fuel level sender, and EVAP functionality, billet fuel rails with mount for OE fuel pressure and temperature sensor, upgraded feed and return lines, high capacity filtration and check valve, flow through t-block direct mounted on HPFP inlet tube, and dual high capacity F2i regulators for providing static fuel pressure to the HPFP and MAP referenced fuel pressure to the port injection.
Fuel system becomes E85 capable by choosing F90000267, F90000274, F90000285 fuel pumps AND microglass SSD or stainless filtration.
Tuners are still working out the integration into the OE electrical system. Fore Innovations will provide detailed assistance on function of supplied components; however, we will not provide assistance with integration/tuning or elimination of alarm codes or the CEL.
INCLUDES (fitting configuration changes with Whipple rail option)

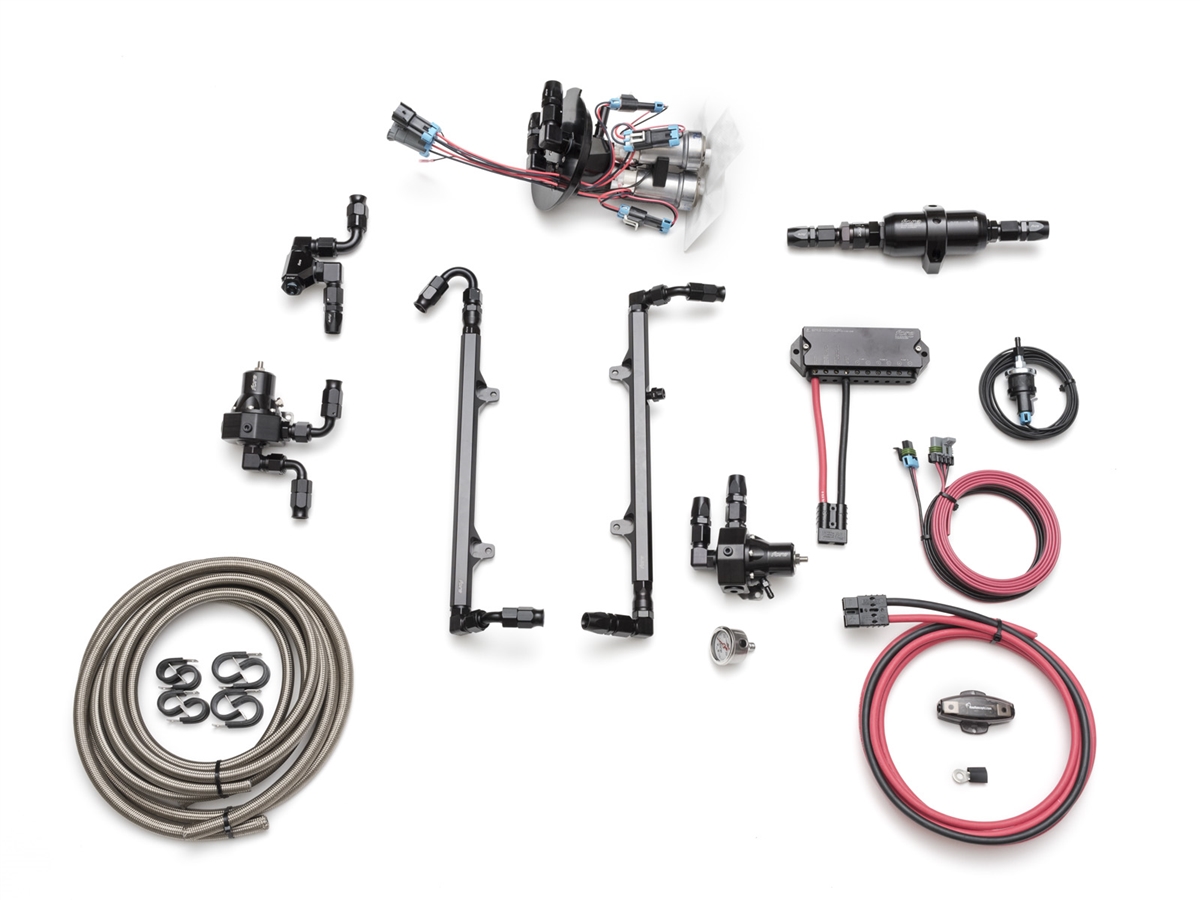

- S550 Mustang Triple Pump Module
- Dual F2i Fuel Pressure Regulators
- Walbro GSS342 G3 Primary & 2 x Secondary Fuel Pumps
- Billet 2018+ Mustang Fuel Rails
- 88mm Inline Fuel Filter
- FCV Checkvalve
- T-block to direct mount on HPFP (High Pressure Fuel Pump)
- All fittings, hose, hardware required for typical fuel line plumbing
-35 feet of fuel line (your choice of type)
-14 billet compression style hose ends (8 x straight, 3 x 90º, 2 x 45º, one 150º)
-Qty 9, billet low profile 90 degree AN to ORB swivel fittings
-Qty 4, billlet straight AN to ORB fittings
-Qty 1, 3/8 EFI female to ORB-10 male adapter
-Qty 2, 1.25″ rail extensions
-Qty 1, ORB-8 plug
-Qty 10, hose straps with stainless mounting screws
NOTES and LIMITATIONS:
1. Set primary regulator to 58 psi with atmosphere reference (for HPFP)
2. Set secondary regulator to 43 psi with MAP reference (for port injection)
3. Primary regulator will match secondary regulator when secondary regulator (base+boost) exceeds 58 psi.
MAP or static referenced direct injection supply fuel system up to 800-900 rwhp with dual fuel pumps (recommended to run one pump full time, then activate secondary pump under load). Supplies High Pressure
Options are available on the follow at extra costs; (note these options on checkout).
Fuel Rail Option
2018+ Coyote fuel rails (Inc with kit)
Delete and reconfigure for Whipple rails [ -$203.00 ]
Delete 2018+ Coyote rails [ -$397.00 ]
Primary Fuel Pump
Walbro GSS342 G3 [ Inc in kit]
TI Auto F90000262 [ +$43.00 ]
TI Auto F90000267 [ +$43.00 ]
TI Auto F90000274 [ +$48.00 ]
TI Auto F90000285 [ +$110.00 ]
Secondary Fuel Pump
2 x Walbro GSS342 G3 [ Inc in kit]
2 x TI Auto F90000262 [ +$85.00 ]
2 x TI Auto F90000267 [ +$85.00 ]
2 x TI Auto F90000274 [ +$102.00 ]
2 x TI Auto F90000285 [ +$231.00 ]
Electrical Upgrade
None (I have my own fuses, wiring, relays, etc)
Pump power pigtails only [ +$43.00 ]
FC2 Controller with wiring [ +$354.00 ]
FC3 Staged Controller with wiring [ +$421.00 ]
Fuel Pressure Regulator
F2i [ +$71.00 ]
Fuel Lines
PTFE -8 Feed / Return
FlexLP -8 Feed / Return
Startlite -8 Feed / Return
Upgrade to -10 Feed [ +$110.00 ]
Filtration Media
Cellulose (Inc with Kit)
Microglass SSD [ +$32.00 ]
Stainless Steel [ +$54.00 ]
Fuel Filter Upgrades
Upgrade to 128mm Filter [ +$51.00 ]
Add billet mounting bracket [ +$76.00 ]
Add filter monitoring gauge and fitting [ +$99.00 ]
System Options
0-100 psi Fuel Pressure Gauge [ +$46.00 ]
Honeywell Pressure Switch for FC3 [ +$76.00 ]
Flex fuel sensor intercept fittings [ +$117.00 ]
Boost / Vacuum Manifold Kit [ +$127.00 ]
Tools
Include 6mL tube of Loctite 567 [ +$14.00 ]
Include black touch-up pen [ +$12.00 ]
AN soft jaws and wrench set [ +$107.00 ]
