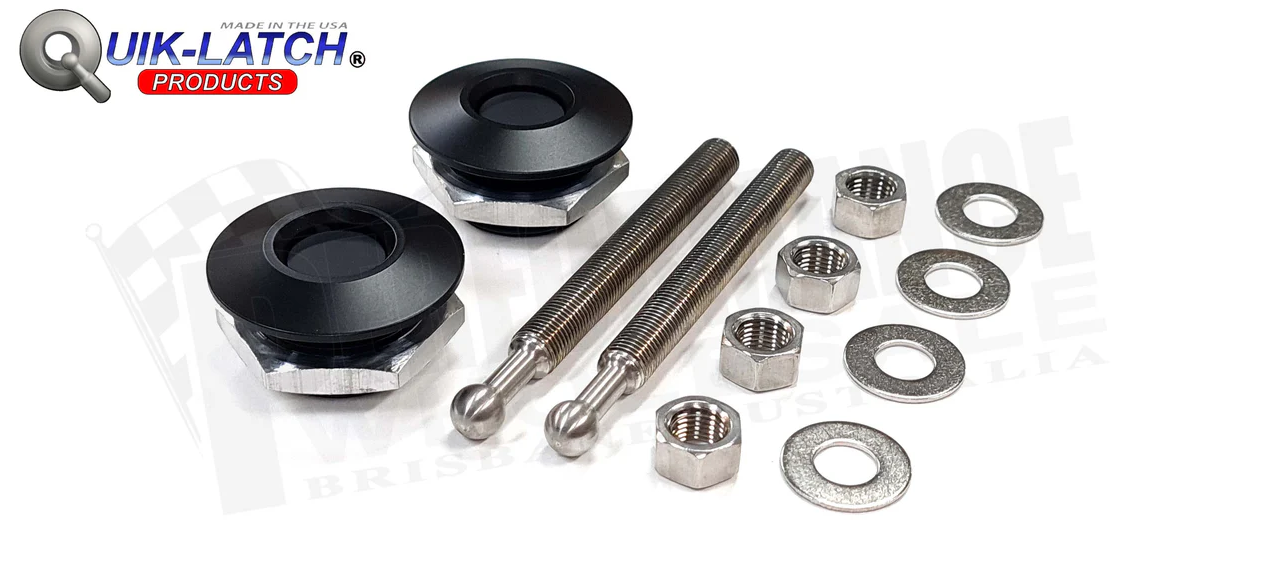

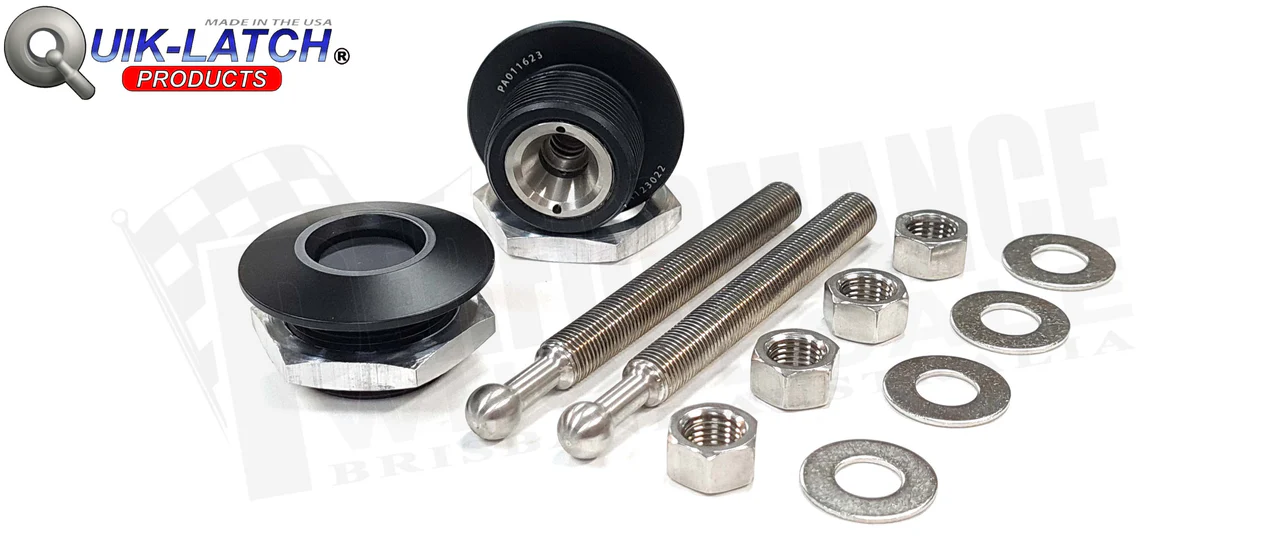

- A low profile look, and with just a push of the button, the hood is unlatched.
- Patented design features one finger activation – button stays in down position until re-latched and then button pops back up.
- No more pins to misplace.
- Installation is simple with basic tools.
- Black Cerakote finished T6 aluminium and stainless steel hardware.
- SPECIFICATIONS:
- Materials 6061 T6 Aluminium / 303 Stainless Steel
- Holding Force: 500lbs per latch
- Weight: 3.2 ounces
- Height: .875 inch (22mm)
- Height Below Mounting Flange: .750 inch (19mm)
- OD of the latch mounting flange: 1.75 inch (44.5mm)
- Thread size of latch body: 1 1/8 x 24 UNEF
- Hole size required to mount latch: 1.25 inch (32mm)
- Pin dimensions: 3/8″ ball with 3/8 x 24 thread
- Retaining Ring: 1.50 inch (38mm) OD x .25 inch (6.4) thickness
- Minimum distance from top of mounting surface to mounting point: 1.125 inch (28.50 mm)
- Maximum distance from top of mounting surface to mounting point: 3.50 inch (88 mm)
- Maximum mounting angle: 18 degrees
- Distance needed to engage pin into latch: .687 inch (17.5mm)
